Pivots for #41233 AFCS/Barney Trasnfer Conveyor, N1021764

Product Details

Product Number: N1021764
Weight: 55 lbs

Product Description

Fine cull reject usually feeds from the AFCS chute into a 1046 canvas hamper. A work room floor employee wheels the hamper back over to the recycling conveyor of the barney system for reprocessing. The AFCS/Barney transfer conveyor accomplishes this task without worker intervention. 16 gauge, 6" tall stainless steel guard rails keep the rejected mail on the 8"W x 104"L system, 1/6 HP 115 V, single phase, 60 Hz., 88FPM drive. Four swivel locking casters. Entrance height 341/2", discharge height 30" (decline angle is approximately 3 degrees) legs adjustable ± 6".

Features

• 200mm W x 2743mm L with plastic spliced PVC belt.
• 1/6 hp, 115/1/60 AC right angle Bodine 646 gear motor.
• Constant belt speed of 88 fpm, continuous duty.
• 16 gauge stainless steel coupler guard.
• Decline floor stand assembly with 4" locking casters.
• 16 gauge stainless steel fixed side rail.

Accessories

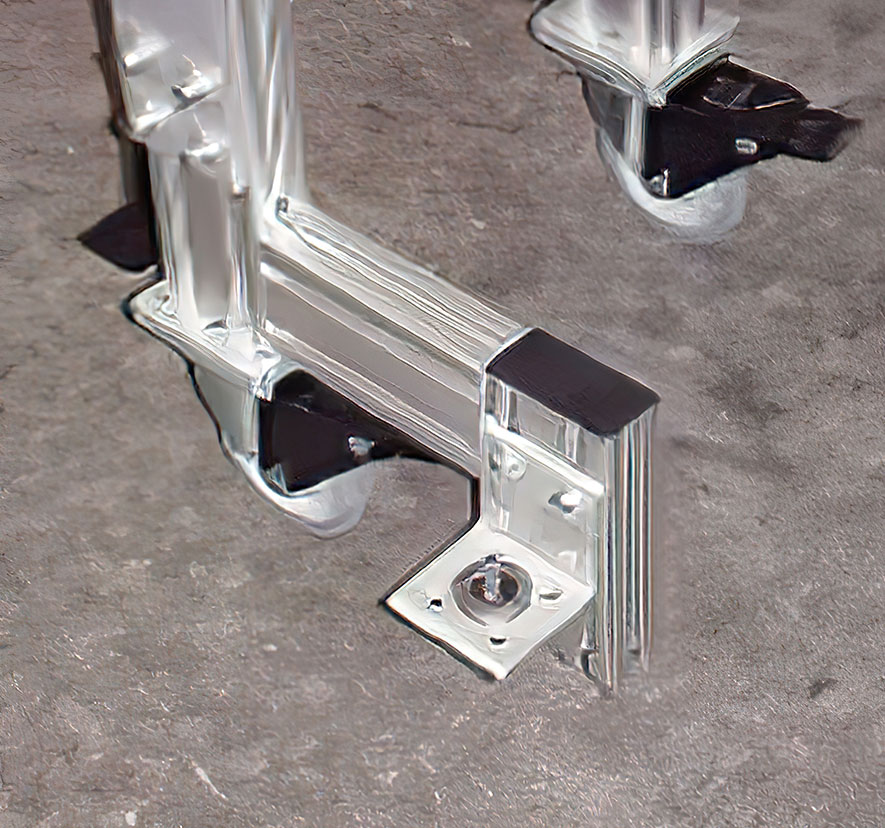

• Pivot located at drive end to roll away from AFCS for cleaning and maintenance.
• Push start/stop button
• E-stop button
• Spare part kit which includes

1. 104" Belt (1)
2. Boding 646 motor (1)
3. Drive Bearing (2)
4. Idler Bearing (2)

FOB: 34677

Ebuy Number

55747
